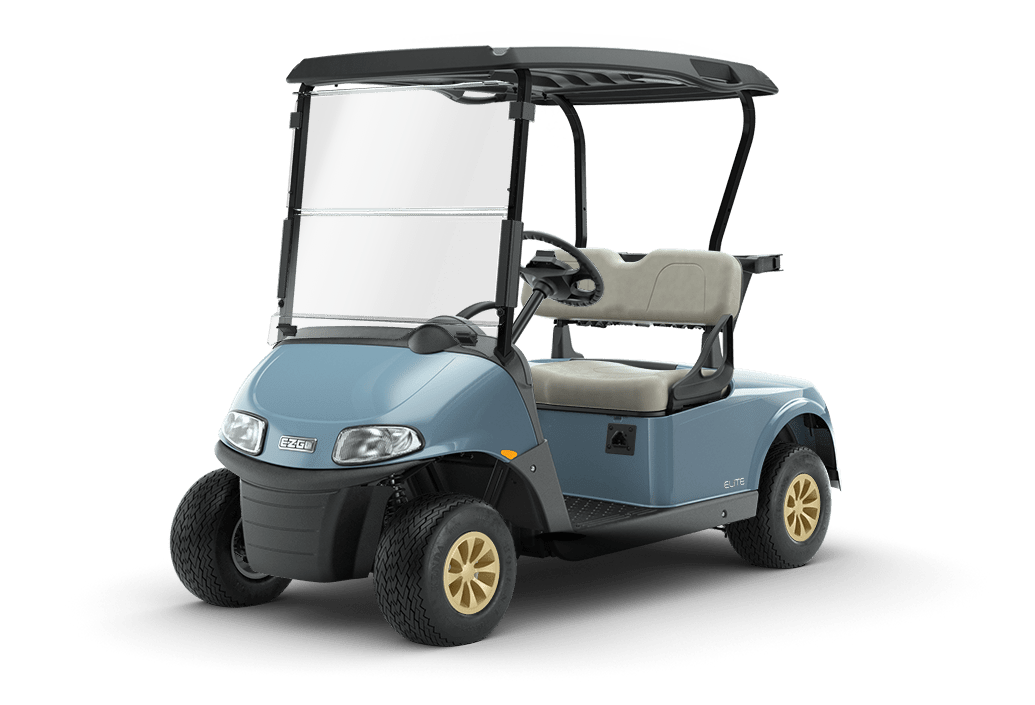

The popular FREEDOM RXV buggy.

FREEDOM RXV

Designed to help you enhance your lifestyle on and off the golf course.

The Freedom has a number of extras that offer a little extra comfort and safety including headlights, rear lights and a horn. This is all while maintaining the reliable and versatile features of the EZGO RXV including the choice between a 48V AC electric drivetrain which features their patented AC drive or the low emission 13.5hp petrol engine.

  • Increased bag storage
  • Redesigned body shell
  • Unique automatic braking system
  • Limited slip-differential
  • Improved seating ergonomics
  • Integrated bottle, ball & tee holders

Can be made road legal

Standard features.

  • E-Z-GO 4 Year Warranty
  • Oversized bag well
  • Comfortable, contoured seats
  • Integrated cup, ball & tee holders
  • Headlights, taillights & brake lights
  • Horn
  • Sweater basket
  • Energy transfer bumpers
  • Deep cup holders
  • 18″ Turf tyres

Model variants.

Freedom RXV Electric

48-volt AC drivetrain

Patented IntelliBrake™ technology

Independent front suspension

Freedom RXV Petrol

13.5-hp gas engine

Limited slip differential

Independent front suspension

In a choice of colours.

With added features.

Add the TFM system.

Textron Fleet Management

The RXV FREEDOM range specifications.

BODY & CHASSIS

FRAME

Welded Steel with Powder-Coat Protection

FINISH

Injection moulded TPO

COLOURS

Almond, Black, Bright White, Burgundy, Electric Blue, Flame Red, Forest Green, Inferno Red, Ivory, Orange, Metallic Charcoal, Oasis Green, Ocean Grey, Patriot Blue, Sunburst Orange (custom colors also available)

DIMENSIONS

LENGTH

94.5 in (240 cm)

WIDTH

47.0 in (119 cm)

HEIGHT

47.5 in (121 cm) (w/o canopy) 67.5 in (171 cm) (w/ canopy)

WHEEL BASE

65.7 in (167 cm)

WHEEL TRACK

(Front) 35.5 in (90 cm) (Rear) 38.0 in (97 cm)

GROUND CLEARANCE

4.0 in (10 cm)

POWER

POWER SOURCE

4-cycle, 9.15 cu in (150 cc)

VALVE TRAIN

Single cylinder OHV

HORSEPOWER (KW)

11.5 hp (8.6 kW) J1995 standard

ELECTRICAL

Internal Starter Generator

BATTERY

One, 12-volt maintenance-free

CHARGER

START

Pedal / Key

AIR CLEANER

Industrial-rated dry filter

LUBRICATION

Pressurized oil system

OIL FILTER

Removable Oil Screen

COOLING

Air-cooled

FUEL

5.96 gallons (23.1 L)

SPEED CONTROLLER

DRIVE TRAIN

Automatic, continuously variable transmission (CVT)

TRANSAXLE

Differential with helical gears

GEARS

Forward-Reverse

REAR AXLE RATIO

11:47:1 (forward) 14:35:1 (reverse)

PERFORMANCE

SEATING CAPACITY

2 Passenger

WEIGHT w/o BATTERIES

676 lb (307 kg)

CURB WEIGHT

692 lb (314 kg)

LOAD CAPACITY

500 lb (227 kg)

TOWING CAPACITY

3 E-Z-GO golf cars with approved tow bars

OUTSIDE CLEARANCE CIRCLE

19.0 ft (5.8 m)

SPEED

19.0 mph ± 0.5 mph (31 kph ± 0.8 kph)

STEERING & SUSPENSION

STEERING

Double-ended rack and pinion

SUSPENSION

(Front) Independent A-Arm Coil Over Shock (Rear) Mono-Leaf springs with hydraulic shock

SERVICE BRAKE

Rear wheel mechanical self-adjusting drum

TYRES

Hole-in-One 18 x 8.50-8 (4-ply rated)

BODY & CHASSIS

FRAME

Welded Steel with Powder-Coat Protection

FINISH

Injection moulded TPO

COLOURS

Almond, Black, Bright White, Burgundy, Electric Blue, Flame Red, Forest Green, Inferno Red, Ivory, Orange, Metallic Charcoal, Oasis Green, Ocean Grey, Patriot Blue, Sunburst Orange (custom colors also available)

DIMENSIONS

LENGTH

94.5 in (240 cm)

WIDTH

47.0 in (119 cm)

HEIGHT

47.5 in (121 cm) (w/o canopy) 67.5 in (171 cm) (w/ canopy)

WHEEL BASE

65.7 in (167 cm)

WHEEL TRACK

(Front) 35.5 in (90 cm) (Rear) 38.0 in (97 cm)

GROUND CLEARANCE

4.0 in (10 cm)

POWER

POWER SOURCE

48-Volt AC

VALVE TRAIN

48-Volt AC

HORSEPOWER (KW)

4.4 hp (3.3 kW) continuous

ELECTRICAL

48-volt

BATTERY

Four, 12-volt deep cycle

CHARGER

Lead Acid Charger: SC-48 (3.0 M) DC Cord

START

Pedal / Key

AIR CLEANER

LUBRICATION

OIL FILTER

COOLING

FUEL

SPEED CONTROLLER

235 Amp solid state controller

DRIVE TRAIN

Motor shaft direct drive

TRANSAXLE

Limited Slip Differential

GEARS

Forward-Neutral-Reverse Integrated

REAR AXLE RATIO

16.99:1

PERFORMANCE

SEATING CAPACITY

2 Passenger

WEIGHT w/o BATTERIES

565 lb (253.3 kg)

CURB WEIGHT

905 lb (410.5 kg)

LOAD CAPACITY

800 lb (360 kg)

TOWING CAPACITY

3 E-Z-GO golf cars with approved tow bars

OUTSIDE CLEARANCE CIRCLE

19.0 ft (5.8 m)

SPEED

19.0 mph ± 0.5 mph (31 kph ± 0.8 kph)

STEERING & SUSPENSION

STEERING

Double-ended rack and pinion

SUSPENSION

(Front) Independent A-Arm Coil Over Shock (Rear) Mono-Leaf springs with hydraulic shock

SERVICE BRAKE

Induction Motor

TYRES

Hole-in-One 18 x 8.50-8 (4-ply rated)

BODY & CHASSIS

FRAME

Welded Steel with Powder-Coat Protection

FINISH

Injection moulded TPO

COLOURS

Almond, Black, Bright White, Burgundy, Electric Blue, Flame Red, Forest Green, Inferno Red, Ivory, Orange, Metallic Charcoal, Oasis Green, Ocean Grey, Patriot Blue, Sunburst Orange (custom colors also available)

DIMENSIONS

LENGTH

94.5 in (240 cm)

WIDTH

47.0 in (119 cm)

HEIGHT

47.5 in (121 cm) (w/o canopy) 67.5 in (171 cm) (w/ canopy)

WHEEL BASE

65.7 in (167 cm)

WHEEL TRACK

(Front) 35.5 in (90 cm) (Rear) 38.0 in (97 cm)

GROUND CLEARANCE

4.0 in (10 cm)

POWER

POWER SOURCE

56-volt AC

VALVE TRAIN

HORSEPOWER (KW)

4.4 hp (3.3 kW) continuous

ELECTRICAL

56-volt

BATTERY

Two, 56V Lithium ELiTE

CHARGER

Lithium World Charger 56VAC (11 ft., 18 ft.) Cord

START

Pedal / Key

AIR CLEANER

LUBRICATION

OIL FILTER

COOLING

FUEL

SPEED CONTROLLER

235 Amp AC Controller

DRIVE TRAIN

Motor shaft direct drive

TRANSAXLE

Limited Slip Differential

GEARS

Forward-Neutral-Reverse Integrated

REAR AXLE RATIO

16.99:1

PERFORMANCE

SEATING CAPACITY

2 Passenger

WEIGHT w/o BATTERIES

605 lb (274.4 kg)

CURB WEIGHT

655 lb (297.1 kg)

LOAD CAPACITY

800 lb (360 kg)

TOWING CAPACITY

3 E-Z-GO golf cars with approved tow bars

OUTSIDE CLEARANCE CIRCLE

19.0 ft (5.8 m)

SPEED

19.0 mph ± 0.5 mph (31 kph ± 0.8 kph)

STEERING & SUSPENSION

STEERING

Double-ended rack and pinion

SUSPENSION

(Front) Independent A-Arm Coil Over Shock (Rear) Mono-Leaf springs with hydraulic shock

SERVICE BRAKE

Induction Motor

TYRES

Hole-in-One 18 x 8.50-8 (4-ply rated)

BODY & CHASSIS

FRAME

Welded Steel with Powder-Coat Protection

FINISH

Injection moulded TPO

COLOURS

Almond, Black, Bright White, Burgundy, Electric Blue, Flame Red, Forest Green, Inferno Red, Ivory, Orange, Metallic Charcoal, Oasis Green, Ocean Grey, Patriot Blue, Sunburst Orange (custom colors also available)

DIMENSIONS

LENGTH

93.0 in (236 cm)

WIDTH

47.0 in (119 cm)

HEIGHT

47.5 in (121 cm) (w/o canopy) 67.5 in (171 cm) (w/canopy)

WHEEL BASE

66.0 in (168 cm)

WHEEL TRACK

(Front) 34 in (86 cm) (Rear) 38.5 in (98 cm)

GROUND CLEARANCE

4.5 in (11.4 cm)

POWER

POWER SOURCE

4-cycle, 9.15 cu in (150 cc)

VALVE TRAIN

Single cylinder OHV

HORSEPOWER (KW)

11.5 hp (8.6 kW) J1995 standard

ELECTRICAL

Internal Starter Generator

BATTERY

One, 12-volt maintenance-free

CHARGER

START

Pedal / Key

AIR CLEANER

Industrial-Rated Dry Filter

LUBRICATION

Pressurized oil system

OIL FILTER

Removable Oil Screen

COOLING

Air-cooled

FUEL

5.96 Gallon (22.6 L)

SPEED CONTROLLER

DRIVE TRAIN

Continuously Variable Transmission (CVT)

TRANSAXLE

Differential with helical gears

GEARS

Forward-reverse

REAR AXLE RATIO

11.47:1 (forward) 14.35:1 (reverse)

PERFORMANCE

SEATING CAPACITY

2 Passenger

WEIGHT w/o BATTERIES

723 lb (328 kg)

CURB WEIGHT

739 lb (335 kg)

LOAD CAPACITY

500 lb (227 kg)

TOWING CAPACITY

3 E-Z-GO golf cars with approved tow bars

OUTSIDE CLEARANCE CIRCLE

19.2 ft (5.8 m)

SPEED

19.0 mph ± 0.5 mph (31 kph ± 0.8 kph)

STEERING & SUSPENSION

STEERING

Self-compensating rack and pinion

SUSPENSION

Leaf springs with hydraulic shock absorbers

SERVICE BRAKE

Rear wheel mechanical, self-adjusting drum

TYRES

Hole-in-One 18 x 8.50-8 (4-ply rated)

BODY & CHASSIS

FRAME

Welded Steel with Powder-Coat Protection

FINISH

Injection moulded TPO

COLOURS

Almond, Black, Bright White, Burgundy, Electric Blue, Flame Red, Forest Green, Inferno Red, Ivory, Orange, Metallic Charcoal, Oasis Green, Ocean Grey, Patriot Blue, Sunburst Orange (custom colors also available)

DIMENSIONS

LENGTH

93.0 in (236 cm)

WIDTH

47.0 in (119 cm)

HEIGHT

47.5 in (121 cm) (w/o canopy) 67.5 in (171 cm) (w/canopy)

WHEEL BASE

66.0 in (168 cm)

WHEEL TRACK

(Front) 34 in (86 cm) (Rear) 38.5 in (98 cm)

GROUND CLEARANCE

4.5 in (11.4 cm)

POWER

POWER SOURCE

48-volt DC

VALVE TRAIN

HORSEPOWER (KW)

ELECTRICAL

48-volt

BATTERY

Six, 8-volt deep cycle

CHARGER

48 V PowerWise QE, 120 VAC, UL and CSA

START

Pedal / Key

AIR CLEANER

LUBRICATION

OIL FILTER

COOLING

FUEL

SPEED CONTROLLER

250-amp solid-state controller

DRIVE TRAIN

Motor shaft direct drive

TRANSAXLE

Differential with helical gears

GEARS

Forward-Neutral-Reverse

REAR AXLE RATIO

12.44:1

PERFORMANCE

SEATING CAPACITY

2 Passenger

WEIGHT w/o BATTERIES

577 lb (262 kg)

CURB WEIGHT

943 lb (429 kg)

LOAD CAPACITY

800 lb (360 kg)

TOWING CAPACITY

3 E-Z-GO golf cars with approved tow bars

OUTSIDE CLEARANCE CIRCLE

19.2 ft (5.8 m)

SPEED

14.5 mph – 19.5 mph (23.3 kph – 31.4 kph)

STEERING & SUSPENSION

STEERING

Self-compensating rack and pinion

SUSPENSION

Leaf springs with hydraulic shock absorbers

SERVICE BRAKE

Rear wheel mechanical, self-adjusting drum

TYRES

18 x 8.50-8 (4-ply rated)

BODY & CHASSIS

FRAME

Welded Steel with Powder-Coat Protection

FINISH

Injection moulded TPO

COLOURS

Almond, Black, Bright White, Burgundy, Electric Blue, Flame Red, Forest Green, Inferno Red, Ivory, Orange, Metallic Charcoal, Oasis Green, Ocean Grey, Patriot Blue, Sunburst Orange (custom colors also available)

DIMENSIONS

LENGTH

93.0 in (236 cm)

WIDTH

47.0 in (119 cm)

HEIGHT

47.0 in (119 cm) (top of steering wheel) 68.5 in (174 cm) (top of sun canopy)

WHEEL BASE

66.5 in (169 cm)

WHEEL TRACK

(Front) 34.5 in (88 cm) (Rear) 38.5 in (98 cm)

GROUND CLEARANCE

4.0 in (10 cm)

POWER

POWER SOURCE

56-volt AC

VALVE TRAIN

HORSEPOWER (KW)

ELECTRICAL

56-volt

BATTERY

Two, 56V Lithium Ion

CHARGER

START

Pedal / Key

AIR CLEANER

LUBRICATION

OIL FILTER

COOLING

FUEL

SPEED CONTROLLER

250-amp solid-state controller

DRIVE TRAIN

Motor shaft direct drive

TRANSAXLE

Differential with helical gears

GEARS

Body mounted forward-neutral-reverse

REAR AXLE RATIO

12.44:1

PERFORMANCE

SEATING CAPACITY

2 Passenger

WEIGHT w/o BATTERIES

588 lb (267 kg)

CURB WEIGHT

638 lb (290 kg)

LOAD CAPACITY

800 lb (360 kg)

TOWING CAPACITY

OUTSIDE CLEARANCE CIRCLE

19.0 ft (5.8 m)

SPEED

14.5 mph – 19.5 mph (23.3 kph – 31.4 kph)

STEERING & SUSPENSION

STEERING

Self-compensating rack and pinion

SUSPENSION

Leaf springs with hydraulic shock absorbers

SERVICE BRAKE

Rear wheel mechanical, self-adjusting drum

TYRES

Hole-in-One 18 x 8.50-8 (4-ply rated)
